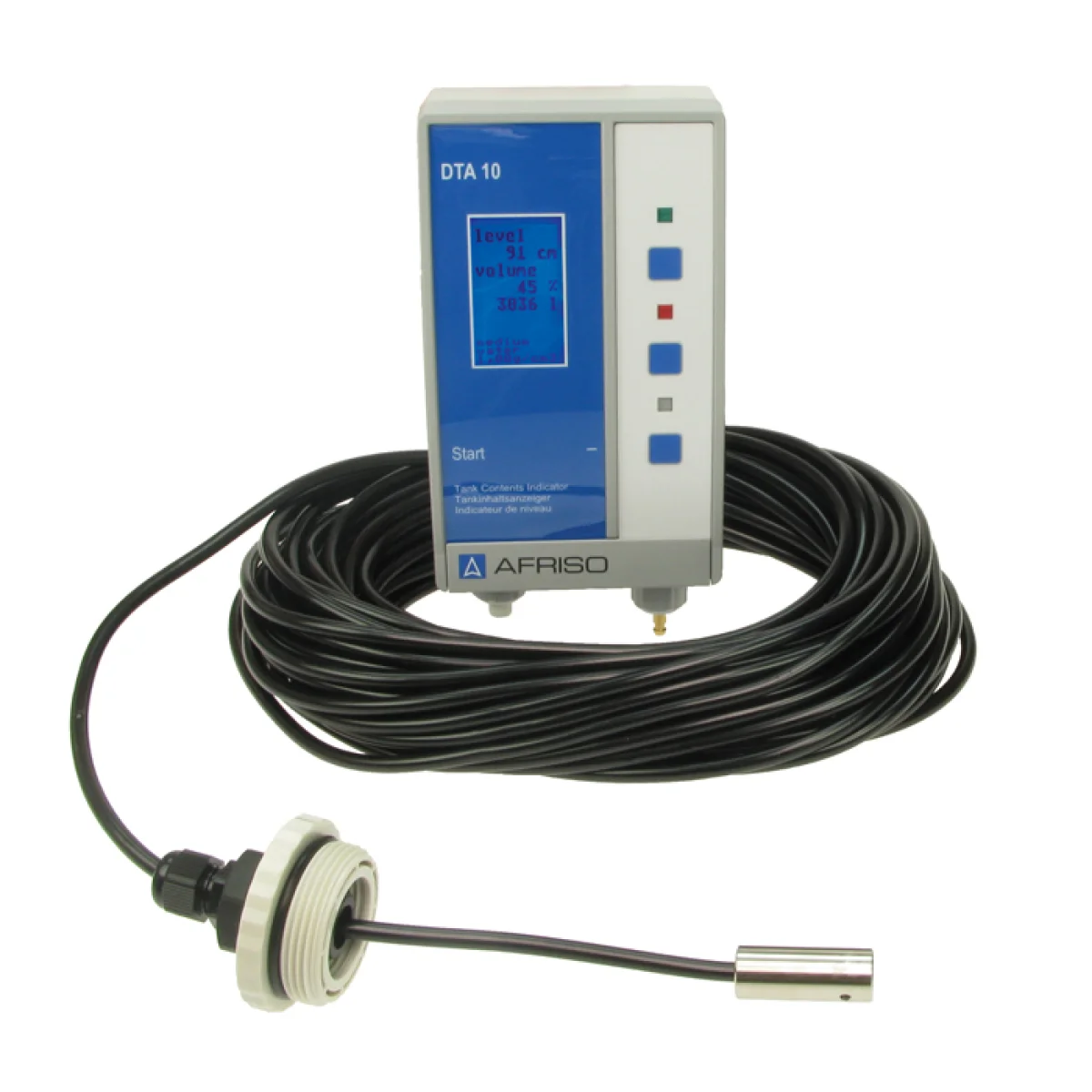

HYTEK Afriso Tank Gauge – Battery Powered

Level Measurement Hytek

The product consists of a control unit and a measuring line. The control unit contains the display and the controls in an impact-resistant plastic housing.

• Suitable with diesel, biodiesel, oils, water & AdBlue®. • Readout can be sited up to 20m away from tank. Hydrostatic gauge. • Universal tank adaptor 1”, 1½” & 2” M BSPP. Integral wall mounting holes. • Digital display shows litres, cm & %. • Suits tanks from 0 4m diesel (water/AdBlue® 3.5m). • Max tank volume 99,999L. • Powered by a 9V battery (supplied) no need to remove front cover to replace. • Battery bar shows remaining life. • Suitable with linear, spherical & horizontal cylindrical tanks only. • % alarm 0 100% display flashes red & gives visual warning, no audible alarm. • Display comes on after you press any button, gives tank level reading, has a backlight, times out after 60 seconds. • Compatible with existing UNITOP/UNITEL gauge probes so upgrading is simple. • Dimensions 188mm H x 100mm W x 65mm D. • Important: if sited outside a weatherproof cover is needed.

Request a Quote on WhatsApp Enquire by Form

Pricing and lead time are quoted per project. Contact Bedeck International with your process conditions (flow, pressure, temperature, media and connection sizes) for a matched selection.
